The LTDx Fairway is the ultimate distance fairway. A balance of front and back weighting creates the best combination of low spin, speed, and high launch for maximum carry with stopping power.

Tech Overview

PWR-COR TECHNOLOGY

PWR-COR Technology is a multi-material weighting system that positions as much weight as possible low and forward. The weighting system utilizes a tungsten internal weight and an aluminum external weight that is positioned right behind the hitting zone to transfer maximum speed to the golf ball at impact with reduced spin. The addition of a 12g back weight perfectly balances low spin with high launch and extreme forgiveness for ultimate distance.

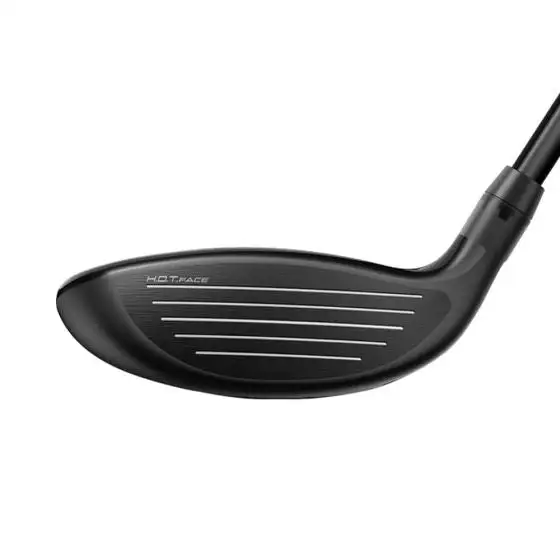

H.O.T FACE TECHNOLOGY

Using machine learning, we’ve created a new variable thickness design that is precision tuned for speed. H.O.T stands for “Highly Optimized Topology.” Using data from thousands of impact simulations, we’ve optimized thicknesses in 15 different zones to maximize ball speed across a larger area of the face. These zones create visual peaks and valleys that resemble a topology map, which is how the design got its name.

FIXED BACK WEIGHTING

A 12g back weight increases stability and promotes a higher ball flight with maximum carry distance.

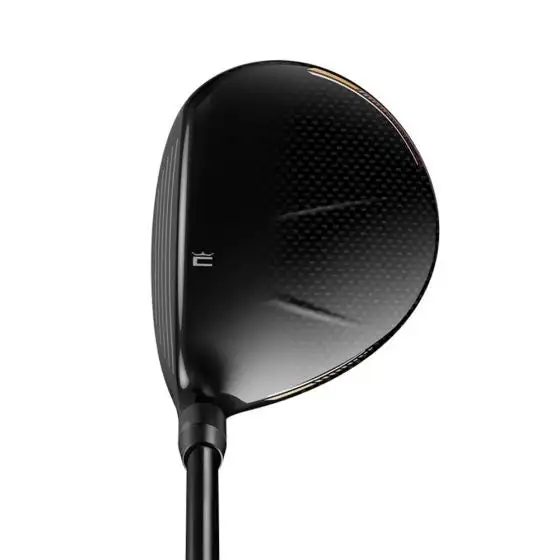

LIGHTWEIGHT CARBON CROWN

A carbon crown is lighter than titanium and frees up more discretionary weight to reposition low within the head to maximize speed and stability.

PROGRESSIVE BAFFLER RAILS

The 3W features no rails to account for a sweeping, shallow swing while the 5W and 7W feature pronounced rails to improve turf interaction for steeper swings.

Specifications

CLUB	LOFT SETTING -1.5° / -1° / -1° Draw / STD° / STD° Draw / +1° / +1° Draw / +1.5°	HEAD VOLUME	LIE ANGLE	LENGTH (Arccos grip adds .25″ in custom)	SWING WEIGHT	SHAFT FLEX	RH/LH
3W	13.5° / 14.0° / 14.0° Draw / 15.0° / 15.0° Draw / 16.0° / 16.0° Draw / 16.5°	162cc	58.00°	43.00″	iM10: D1 Helium: C9.5	S, R, A	RH/LH
5W	17° / 17.5° / 17.5° Draw / 18.5° / 18.5° Draw / 19.5° / 19.5° Draw / 20°	154cc	58.75°	42.50″	iM10: D1 Helium: C9.5	S, R, A	RH/*LH
7W	21° / 21.5° / 21.5° Draw / 22.5° / 22.5° Draw / 23.5° / 23.5° Draw / 24°	153cc	59.50°	42.00″	iM10: D1 Helium: C9.5	S, R, A	RH/*LH

*LH 5W, 7W available through custom only

Shafts

PROJECT X HZRDUS Smoke iM10 60

The iM10 features Hexcel’s® incredibly unique iM10 carbon fiber, a very high modulus (stiff) and very high strength carbon fiber allowing for new possibilities in golf shaft design. The iM10 shafts offers unmatched stability in a playable mid-launch & mid-spin design.

PROJECT X HZRDUS Smoke iM10 60

Model	Description	Flex	Shaft Weight	Kick Point	Launch	Spin	Torque	Tip Diameter
PROJECT X HZRDUS Smoke iM10 60	6.0	Stiff	66g	Mid	Mid	Mid	3.7	0.335
PROJECT X HZRDUS Smoke iM10 60	5.0	Regular	65g	Mid	Mid	Mid	4.8	0.335

UST Helium Nanocore 40, 50

The Helium wood shafts are a light weight design using materials in innovative ways for the best in feel and stability never seen before in light weight structures. This is for the golfer seeking to maximize distance with longer builds and incredible control.

UST Helium Nanocore 40, 50

Model	Description	Flex	Shaft Weight	Kick Point	Launch	Spin	Torque	Tip Diameter
UST Helium Nanocore 50	5F3	Regular	55g	Low	High	High	5.5	0.335
UST Helium Nanocore 40	4F2	Lite (Senior)	45g	Low	High	High	4.8	0.335

Grips

Lamkin Crossline (58R) - Black/Silver (48.5g)

Lamkin Crossline (58R) – Black (48.5g)

Hand	LH, RH
Shaft	A/Lite Flex UST Helium Nanocore, Regular Project X Hzrdus Smoke iM 10, Stiff Project X Hzrdus Smoke iM 10
Loft	3, 5, 7
